UP to 6000MM Large Diameter Drainage Culvert Metal Pipe Assemble Galvanized Corrugated Culvert Pipe

Short Description:

Product Advantages
1.Anticorrosive:more than 10 years in heavy industrial areas.
2.Cheap:The cost of hot-dip galvanizing is lower than that of other coatings.
3.Reliable:The zinc coating is metallurgically bonded to the steel and forms part of the steel surface,so the coating is more durable.
4.Strong toughness:The galvanized layer forms a special metallurgical structure that can withstand mechanical damage during transportation and use.
5.Comprehensive protection:Every part of the plated piece can be galvanized,and is fully protected even in depressions,sharp corners,and hidden places.
6.Save time and energy:Galvanizing process is faster than other coating methods.

Send email to us Email Phone

Product Detail

Product Tags

Product Detail

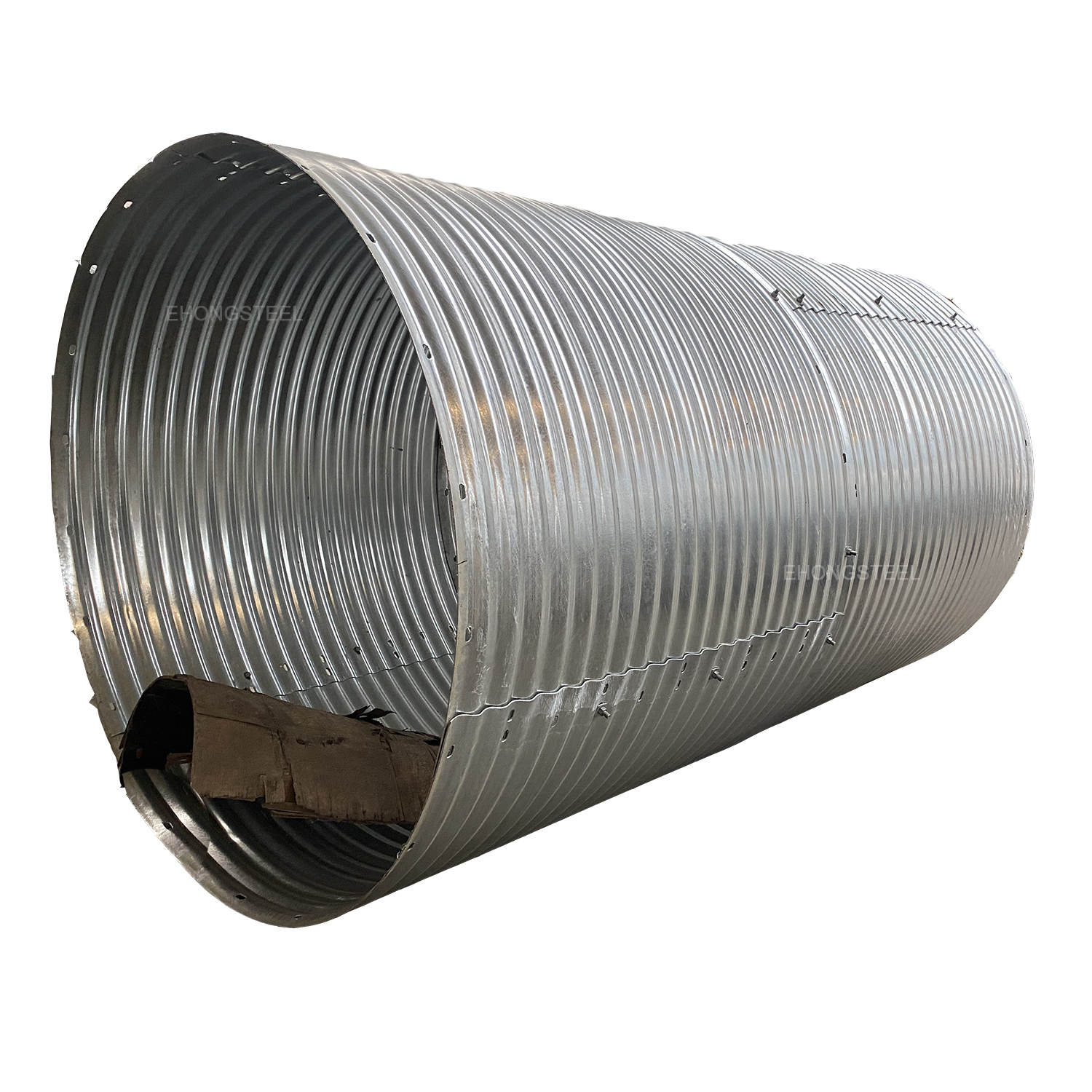

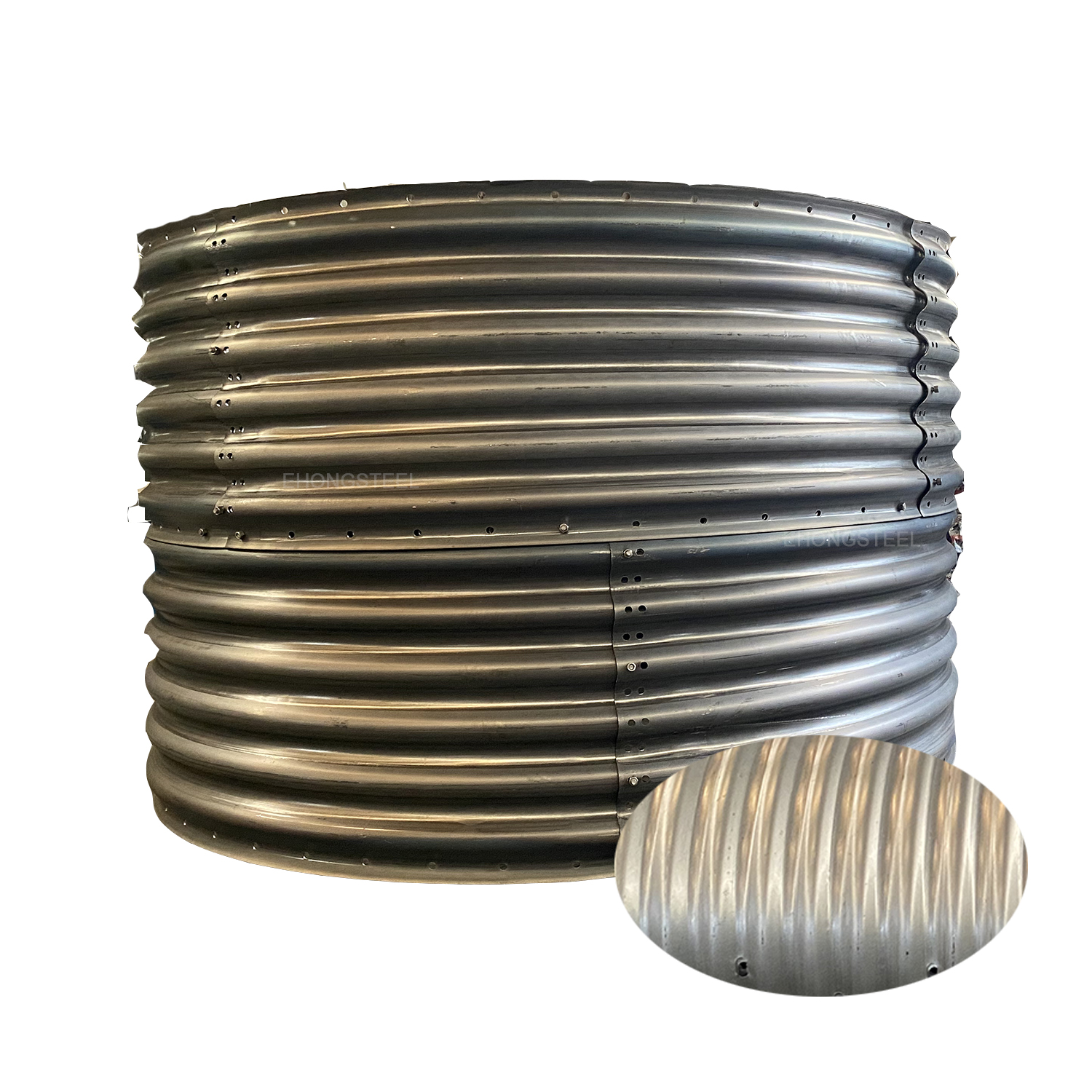

Assembled steel corrugated pipe is assembled by waveform steel plate, using factory standardised design, centralised production,
short production cycle, and the structure of the force situation is reasonable load distribution uniformity, with a certain
resistance to deformation.

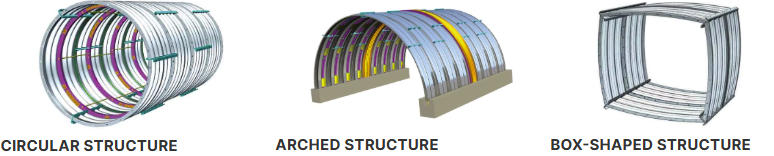

Arch bridge structure is mainly to semi-circular arch and high arch two section types, the bottom of the arch bridge
culvert using reinforced concrete structure and corrugated plate structure to form a shear-resistant effect of the overall
structure, and in the backfill is completed with the formation of soil arch effect of soil to achieve a comprehensive support
effect.

The box culvert structure section combines the advantages of rectangular section and circular section, the use of curved steel
plate to effectively use the box culvert structure of the internal headroom, increase the space utilisation can be effective use
of the principle of common force of the pipe and soil, enhance the overall structural strength, reduce the thickness of the pipe
wall steel plate, cost savings.

Project	Parameter Range	Describe
Nominal Diameter (Mm)	200 – 3600	Customizable On Demand
Wall Thickness (Mm)	1.6 – 3.5	Determine Based On The Load Level
Waveform Type	Circular Waveform/Trapezoidal Ripple	Circular Waves Are More Common
Galvanized Layer Thickness (G/㎡)	≥275	Hot Dip Galvanizing Standard
Steel Material	Q235 / Q345	Optional Materials
Interface Method	Sleeve Connection/Flange Connection/Bolt Connection	Easy To Install
Service Life	Over 50 Years	Under Good Drainage Conditions
Length (Single Section)	1-6 Meters	Can Be Spliced Or Rolled
Application Scenarios	Culverts, Drainage Pipes, Tunnel Walls, Etc	Widely Used

Customized supply

1. Specifications and sizes are customizedAccording to different corrugated models, different diameter sizes, different steel plate thicknesses, and different shapes and structures, special products are specially produced for various special environments.

2. Use performance customization According to the corresponding dynamic load, the corresponding water erosion, the corresponding corrosive environment, and the corresponding geological changes, a special structure with special characteristics is customized.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.of course,we can also according to your demand.
