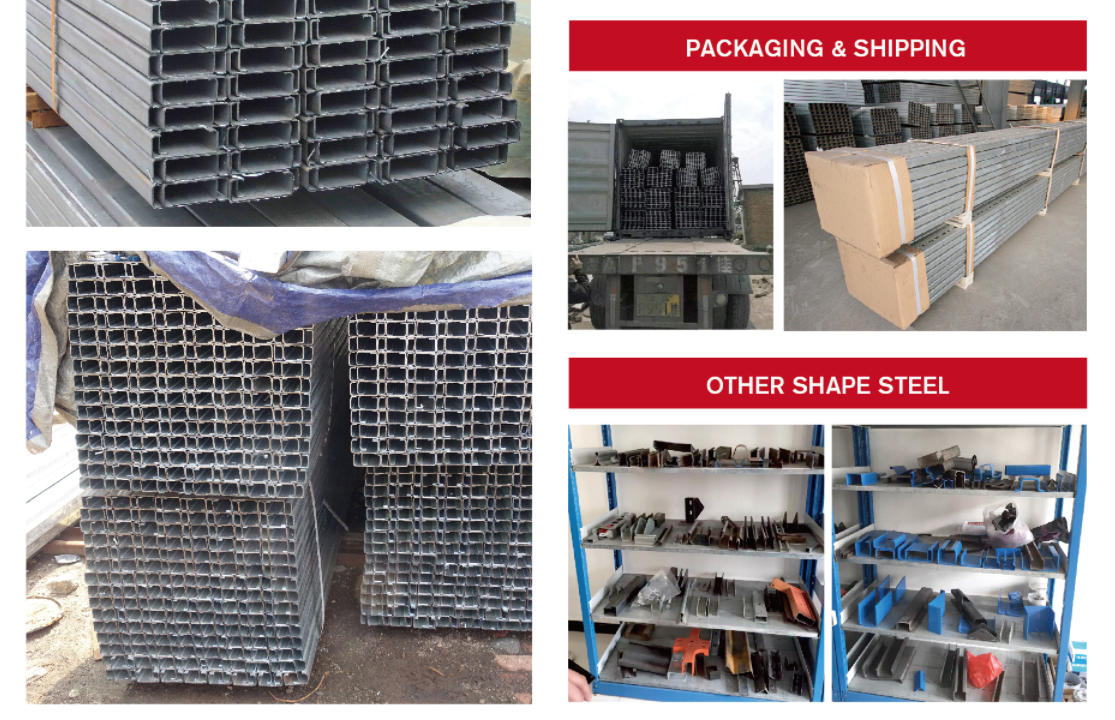

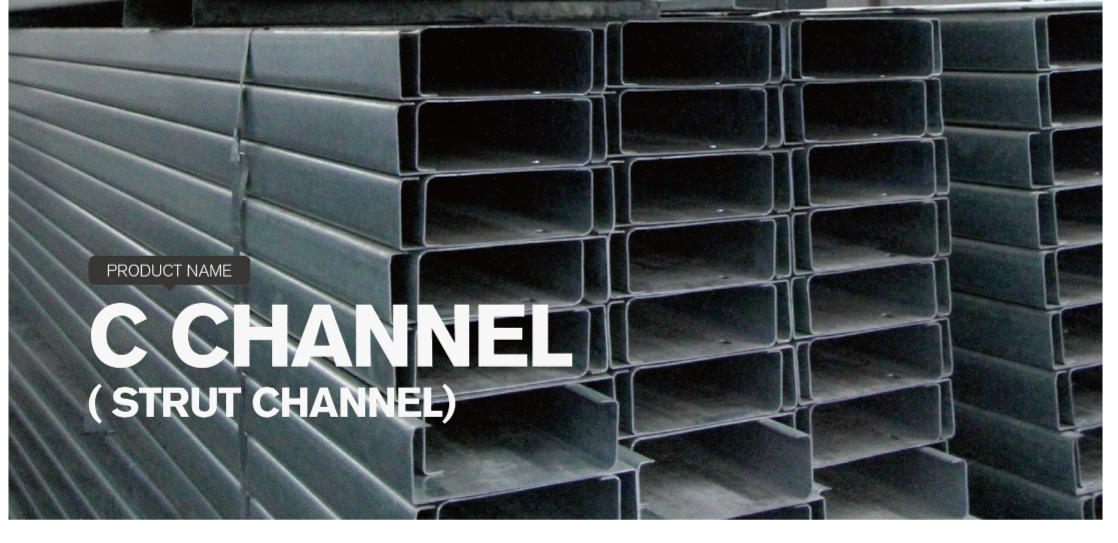

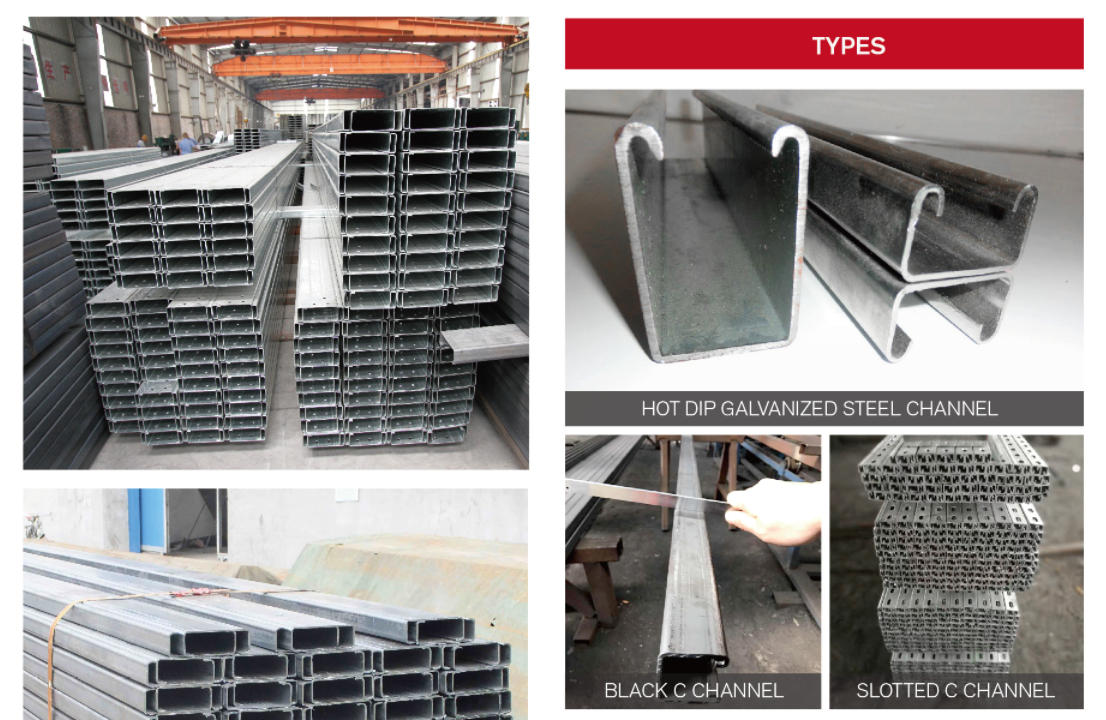

C channel steel is manufactured by cold-forming hot-rolled coils, featuring thin walls, light weight, excellent cross-sectional properties, and high strength. It can be categorized into galvanized C-channel steel, non-uniform C-channel steel, stainless steel C-channel steel, and hot-dip galvanized cable tray C-channel steel.
C channel steel is denoted as C250*75*20*2.5, where 250 represents height, 75 represents width, 20 represents flange width, and 2.5 represents steel plate thickness.
Advantages of C-shaped steel:
1. Lightweight: Facilitates transportation and installation.
2. High strength: Provides reliable structural support.
3. Construction efficiency: Simple installation with short project timelines.
4. Cost-effectiveness: Lower expenses and superior value for money.
Surface treatments for C-shaped steel:
Galvanization: Enhances corrosion resistance, suitable for outdoor or humid environments.
Paint coating: Improves aesthetics and corrosion resistance.
Powder coating: Offers superior corrosion and abrasion resistance.
Comparison of C-Channel Steel with Other Profiles
Compared to H Beam: C-channel steel is lightweight, suitable for light-duty structures; H-beams offer high strength, suitable for heavy-duty structures.
Compared to I Beam: C-channel steel is easy to install, suitable for simple structures; I-beams have strong load-bearing capacity, suitable for complex structures.
C-Channel Steel has an exceptionally wide range of applications. Primary uses include:
1. Building Structures: Used for roof and wall purlins and supports.
2. Mechanical Equipment: Serves as framework or support components.
3. Warehouse Shelving: Used for shelf beams and columns.
4. Bridge Engineering: Employed in temporary support structures.
The C-shaped steel model for photovoltaic mounting systems is carbon steel, primarily available in 41*21mm specifications. This equipment is mainly applied in ground-mounted systems or rooftop photovoltaic systems.
The most suitable installation sites for these components are outdoor areas and rooftop platforms. The installation angle is generally freely adjustable, with a maximum wind load capacity of 60 meters per second and a maximum snow load capacity of 1.4 kN per square meter. The components can be categorized into framed and frameless types, with the ability to position modules horizontally or vertically. The width of the components can also be customized as required.
How do I order our products?
Ordering our steel products is very simple. You just need to follow the steps below:
1. Browse our website to find the right product for your needs. You can also contact us through website message, email, WhatsApp, etc. to tell us your requirements.
2. When we receive your quote request, we will reply you within 12 hours (if it is a weekend, we will reply you as soon as possible on Monday). If you are in a hurry to get a quote, you can call us or chat with us online and we will answer your questions and provide you with more information.
3.Confirm the details of the order, such as product model, quantity (usually starting from one container, about 28tons), price, delivery time, payment terms, etc. We will send you a proforma invoice for your confirmation.
4.Make the payment, we will start the production as soon as possible, we accept all kinds of payment methods, such as: telegraphic transfer, letter of credit, etc.
5.Receive the goods and check the quality and quantity. Packing and shipping to you according to your requirement. We will also provide after-sale service for you.
