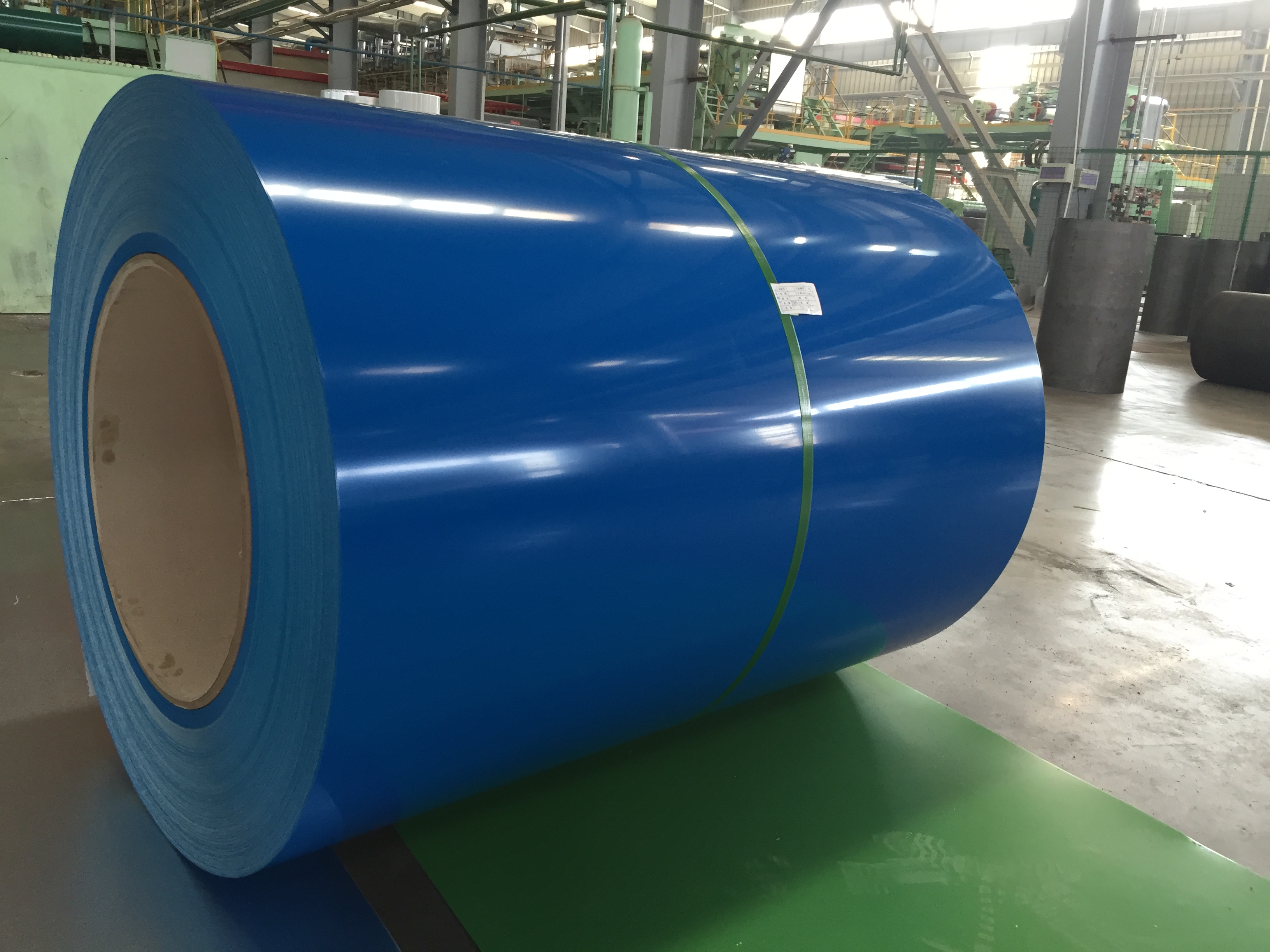

What is a Color-Coated Steel Coil?
A color-coated steel coil, also known as a pre-painted steel coil, is a composite material manufactured using cold-rolled steel, galvanized steel, or other base substrates. The production process involves surface pretreatment (including degreasing, cleaning, and chemical conversion), followed by continuous roll coating to apply one or more layers of organic coatings (such as polyester, silicone-modified polyester, or fluorocarbon). Finally, the material undergoes baking and curing to solidify the coatings.
Base Substrate + Optional Coating Layer + Chemical Conversion Layer + Organic Coating = Color-Coated Steel Coil
Core Structure Analysis of High-Quality Color-Coated Steel Coils
Base Substrate
Determines the material’s strength and basic corrosion resistance. Common types include:
- Cold-rolled base substrate: Low cost but requires use in rust-free environments.
- Hot-dip galvanized base substrate: Strong corrosion resistance, widely used.
- Aluminum-zinc alloy-coated base substrate: 2–6 times more corrosion-resistant than galvanized steel, with superior heat resistance.
Chemical Conversion Layer
Acts as a "bonding agent" between the substrate and coating, enhancing adhesion while further improving corrosion resistance.
Coating System
The source of color and key to performance:
- Primer: Primarily serves as a corrosion inhibitor and ensures strong adhesion to the substrate.
- Topcoat: Provides color, gloss, and weather resistance, protecting against UV rays, rain, and wind erosion.
Color-coated steel coils offer excellent decorative appeal, formability, and corrosion resistance, with long-lasting coating adhesion and vibrant colors. They serve as an ideal material for manufacturing building panels, enabling wood substitution, efficient construction, energy savings, and pollution prevention—delivering significant economic benefits.
How to Select the Right Color-Coated Steel Coil for Your Project
Choosing a color-coated steel coil involves more than just color and price. Key considerations include:
1. Operating Environment
- General industrial/urban settings: Polyester (PE) coatings are cost-effective with good weather resistance.
- High-humidity, coastal, or heavily polluted areas: Silicone-modified polyester (SMP) or high-durability polyester (HDP) coatings are strongly recommended for superior corrosion and chalking resistance.
- Landmark buildings or projects requiring ultra-long lifespans: Fluorocarbon (PVDF) coatings are preferred for their exceptional weather resistance, ensuring no fading or chalking for over 20 years.
2. Thickness and Coating Weight
The base substrate’s thickness and coating weight (e.g., Z60, Z80, Z180) directly impact strength and corrosion lifespan. For outdoor roofing or walls, higher coating weights are advised to ensure long-term safety.
3. Surface Finish
- Smooth: Highly reflective, easy to clean.
- Matte/textured: Premium aesthetic, hides minor scratches.
- Patterned: Enhances rigidity, provides slip resistance, and offers strong decorative appeal.
Q: What is the relationship between color-coated steel coils, color steel sheets, and corrugated color steel sheets?
A: Color-coated steel coils are raw coil materials. Color steel sheets refer to flat plates cut from these coils, while corrugated color steel sheets (profiled steel sheets) are formed by cold-bending the coils or flat plates into wave-like, trapezoidal, or other shapes. Think of it this way: color-coated steel coils are the "fabric," while color steel sheets and corrugated sheets are the "finished garments."
Q: Why do color-coated steel coils of the same color vary significantly in price?
A: Price differences stem from factors like base substrate type and thickness, coating weight, coating system (brand and type of paint), and brand premium. As the Chinese proverb goes, "You get what you pay for." Always clarify technical specifications when purchasing.
Q: How can I identify high-quality color-coated steel coils?
A:Visual inspection: Check for smooth, even surfaces with uniform color.
Technical parameters: Inquire about base substrate coating and coating type.
Certification: Request quality documents and data on salt spray resistance and warranty duration.
