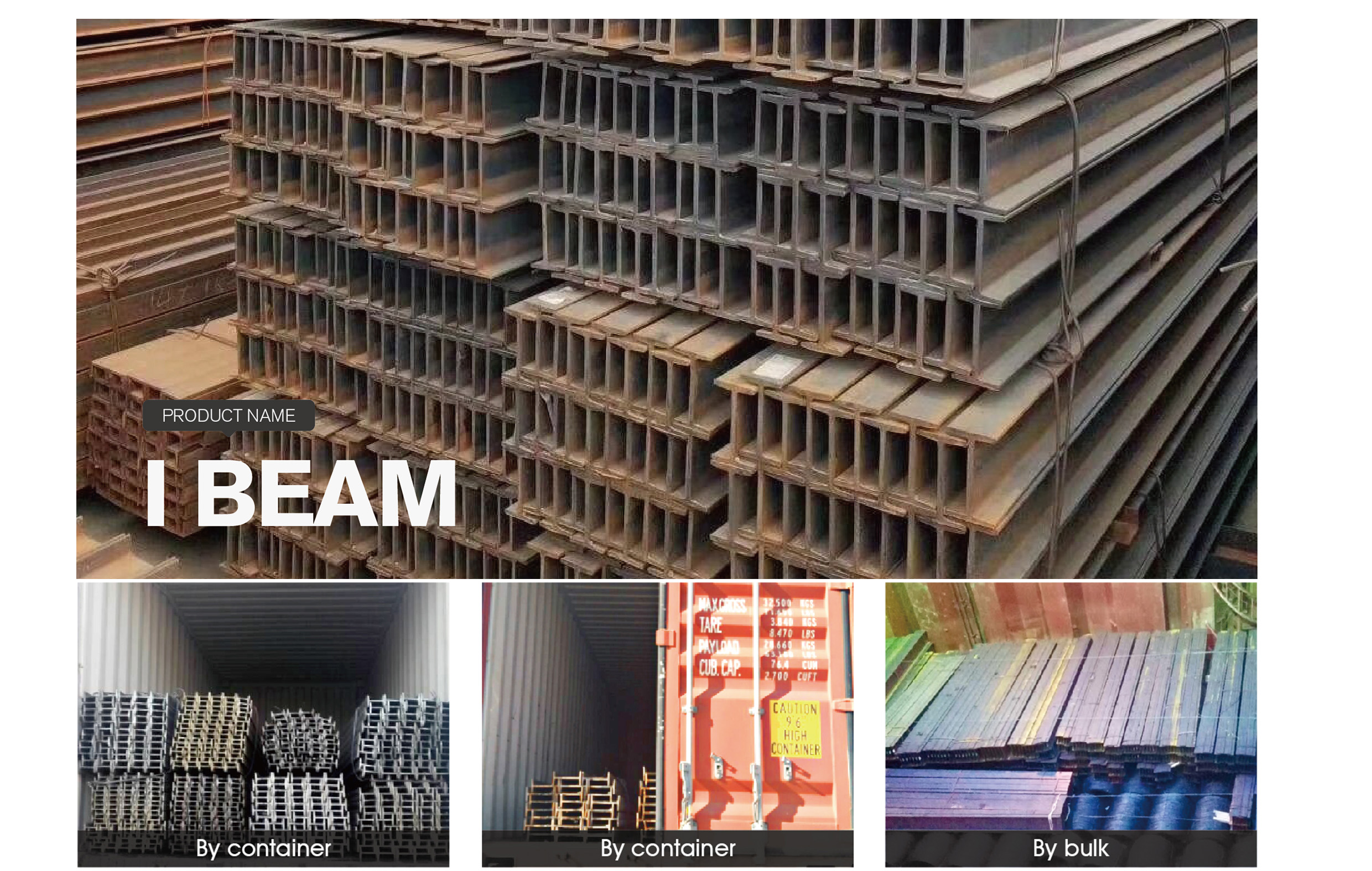

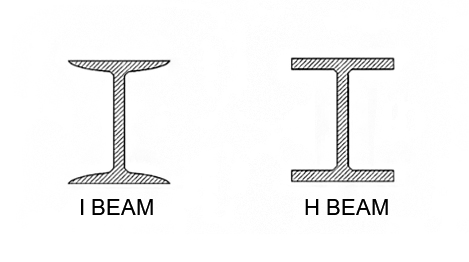

I-Beam: Its cross-section resembles the Chinese character “工” (gōng). The upper and lower flanges are thicker on the inside and thinner on the outside, featuring an approximately 14% slope (similar to a trapezoid). The web is thick, the flanges are narrow, and the edges transition smoothly with rounded corners.

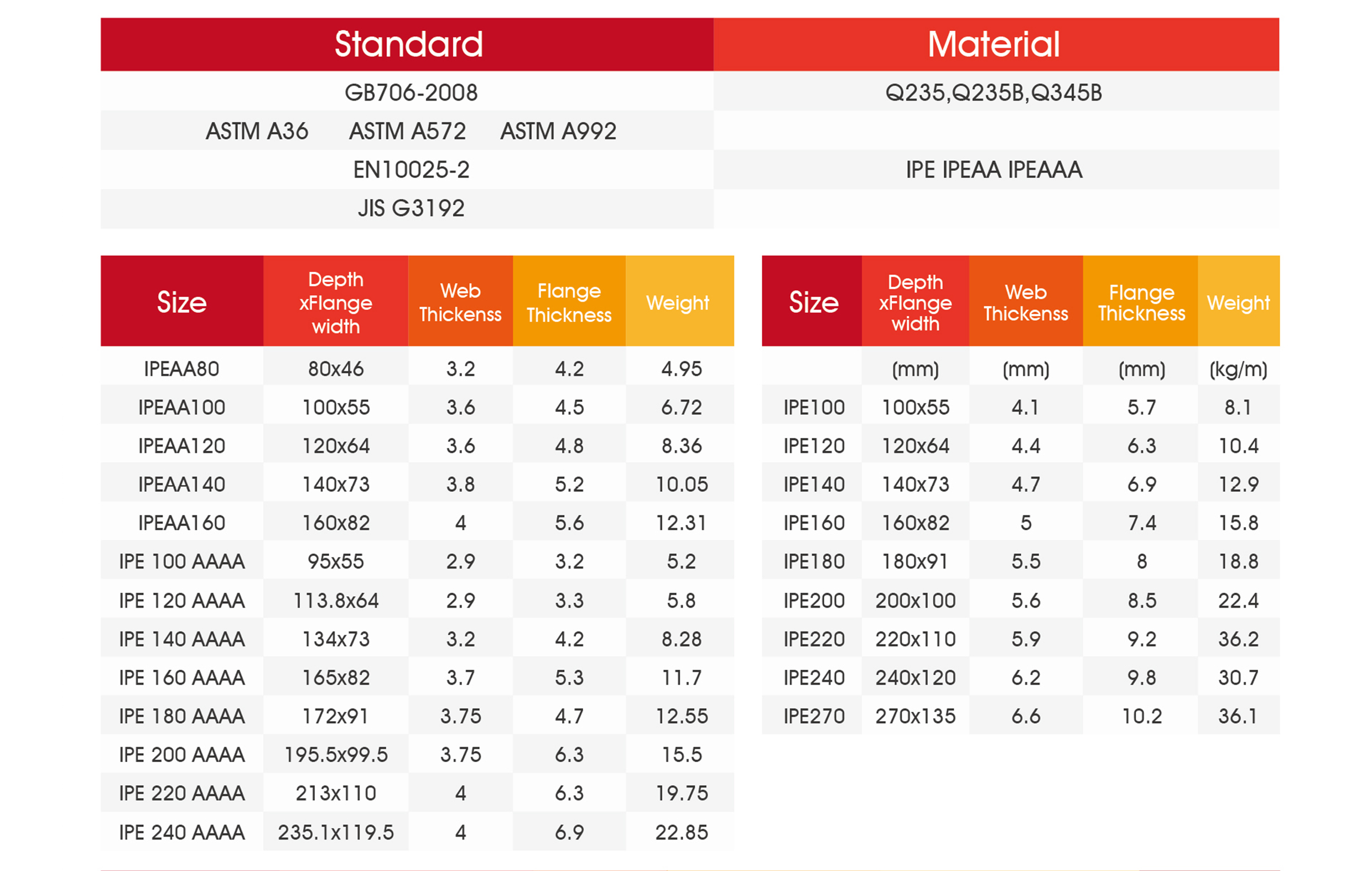

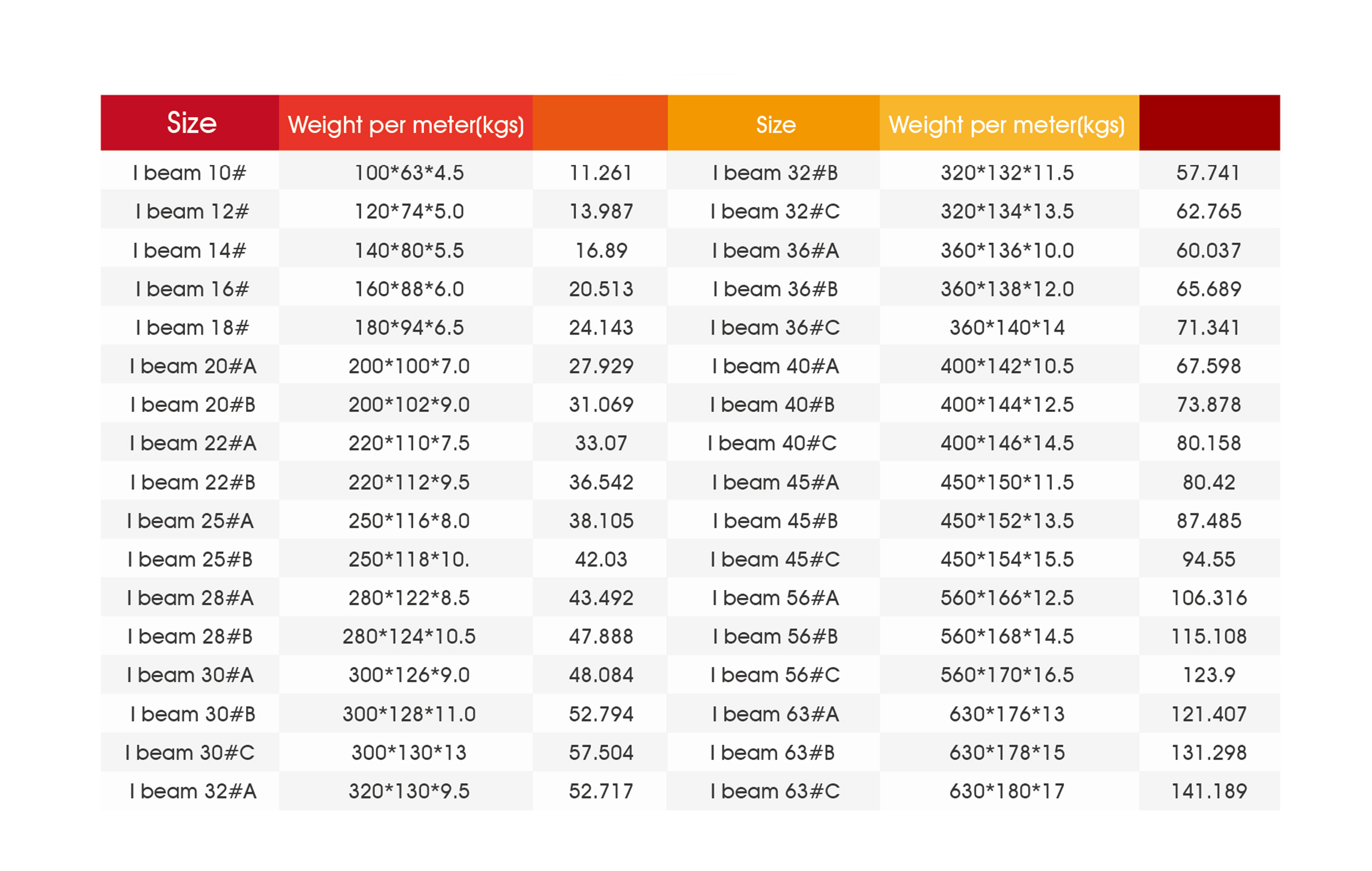

I beams are designated by their web height (in centimeters), e.g., “16#” denotes a web height of 16 cm.
Production Process: Typically manufactured via hot-rolling in a single forming operation, offering simplicity and lower costs. A very small number of I beams are produced using welding processes.
I beams are commonly used as beam components in steel structures. Due to their relatively smaller cross-sectional dimensions, they are suitable for applications with shorter spans and lighter loads.
H Beams:

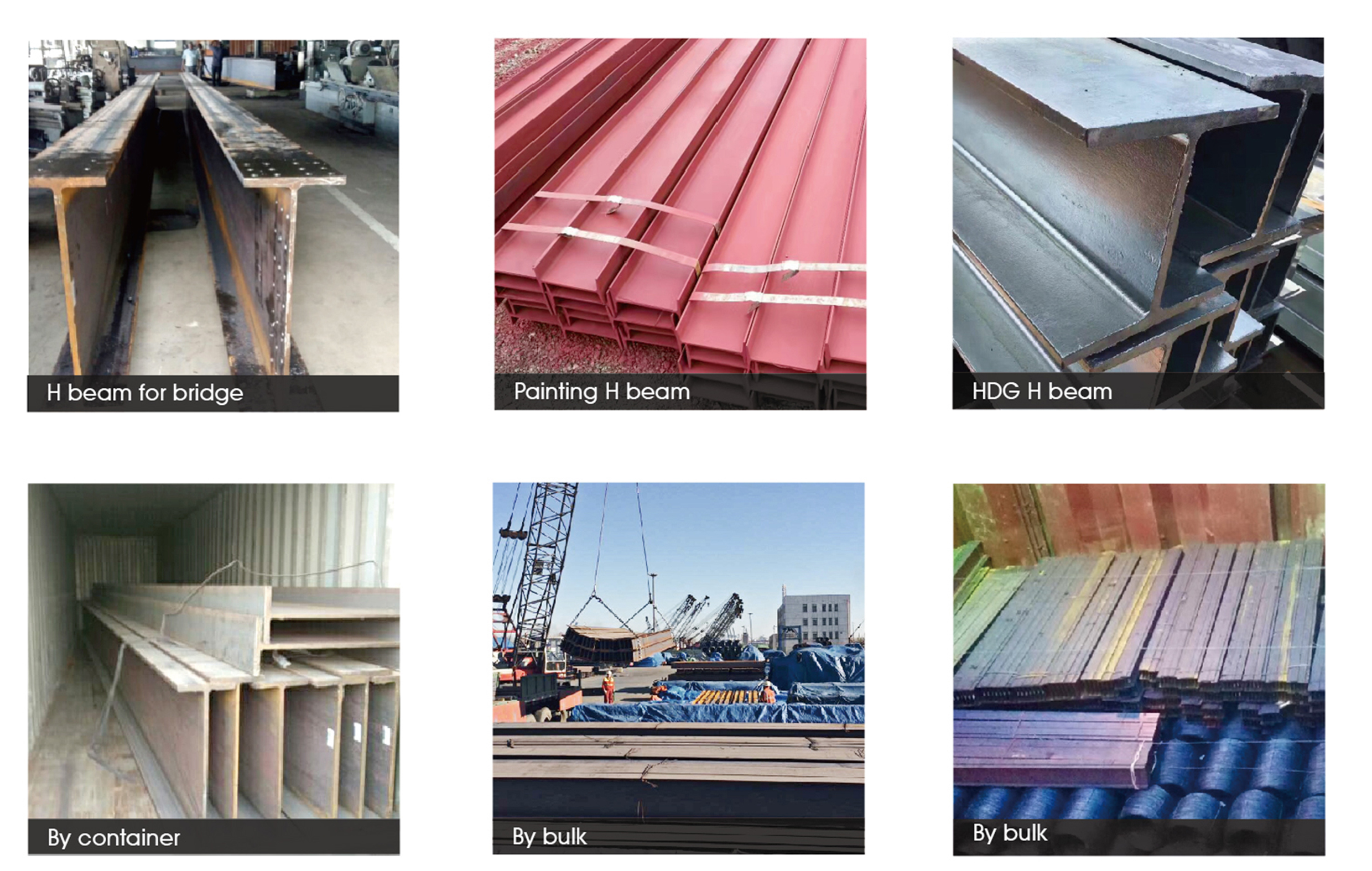

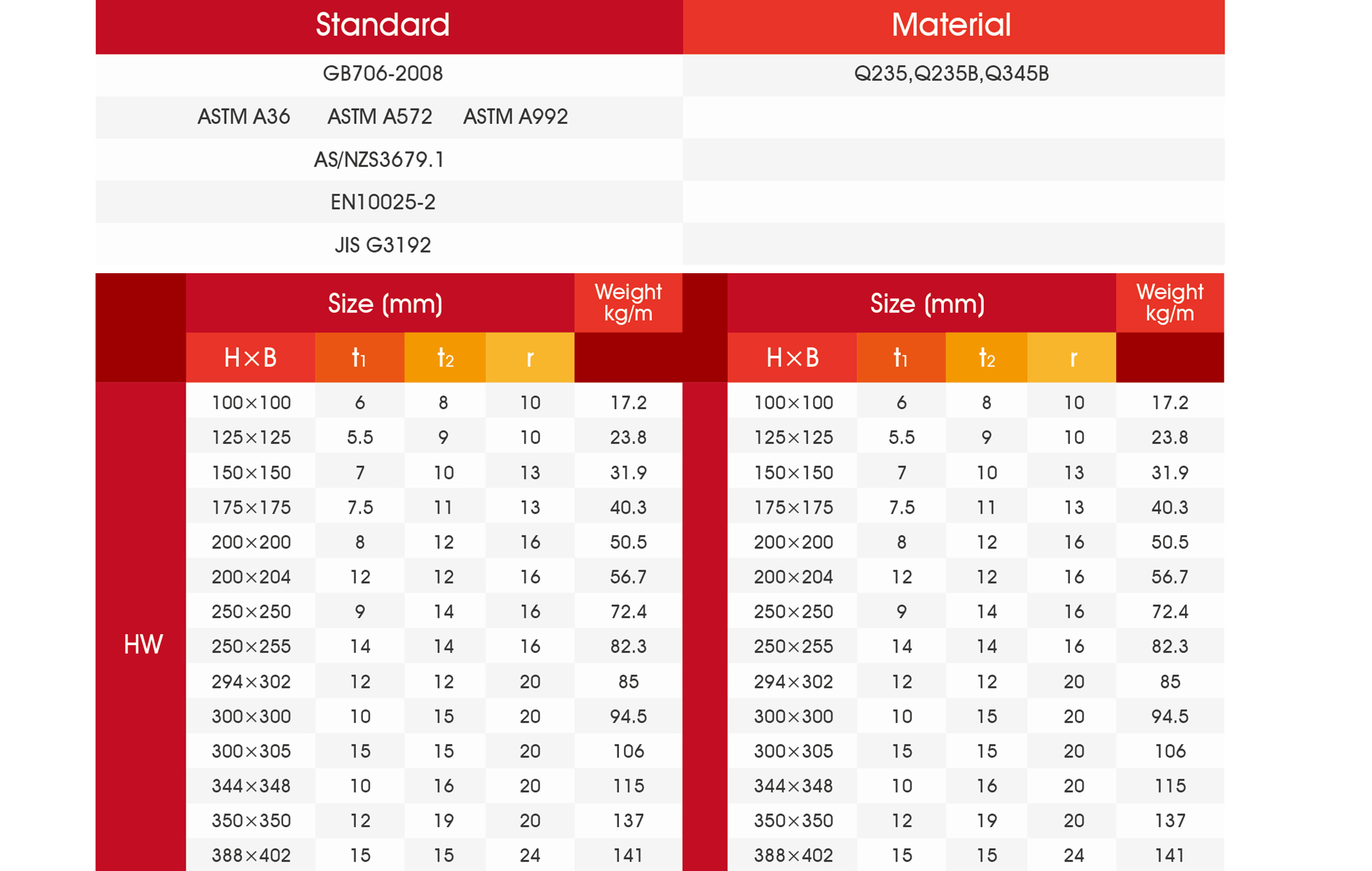

H-Beams: Resemble the letter “H,” featuring equal-thickness flanges that run parallel. The section height and flange width maintain a balanced proportion, with right-angled edges and enhanced overall symmetry. H-beam designation is more complex: e.g., H300×200×8×12 denotes height, width, web thickness, and flange thickness respectively.
Production Process: Primarily manufactured via hot-rolling. Some H-beams are also produced by welding three steel plates together. Hot-rolling H-beams involves a relatively complex process requiring specialized rolling mills, resulting in higher costs—approximately 20%-30% more than I-beams.
H-beam are commonly used in structural steel applications such as load-bearing columns. Due to their large cross-sectional dimensions, they are widely employed in scenarios involving long spans and heavy loads.
Performance Comparison
| Indicator | I-beam | H-beam |
|---|---|---|
| Bending resistance | Weak (narrow flange, stress concentration) | Strong (wide flange, uniform force) |
| Torsion resistance | Poor (easy to deform) | Excellent (high section symmetry) |
| Lateral stability | Requires additional support | Built-in "anti-shake" property |
| Material utilization | Low (flange slope causes steel waste) | Saves 10%-15% steel |
