Galvanized coil is a metal material that achieves highly effective rust prevention by coating the surface of steel plates with a layer of zinc to form a dense zinc oxide film. Its origins date back to 1931 when Polish engineer Henryk Senigiel successfully combined annealing and hot-dip galvanizing processes, establishing the world's first continuous hot-dip galvanizing line for steel strip. This innovation marked the beginning of galvanized steel sheet development.
Galvanized Steel Sheets & coils Performance Characteristics
1) Corrosion Resistance: The zinc coating effectively prevents rust and corrosion of the steel in humid environments.
2) Excellent Paint Adhesion: Alloyed galvanized steel coils exhibit superior paint adhesion properties.
3) Weldability: The zinc coating does not impair the steel's weldability, ensuring easier and more reliable welding.

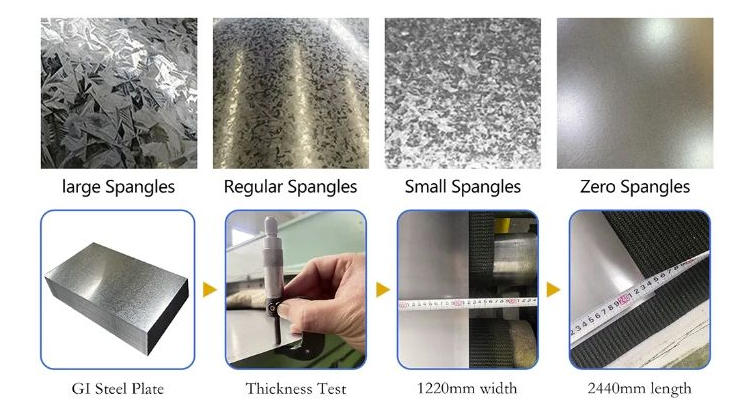

Characteristics of Standard Zinc Flower Sheets
1. Standard zinc flower galvanized sheets feature large, distinct zinc flowers measuring approximately 1 cm in diameter on their surface, presenting a bright and attractive appearance.
2. The zinc coating exhibits excellent corrosion resistance. In typical urban and rural atmospheric environments, the zinc layer corrodes at a rate of only 1–3 microns per year, providing robust protection for the steel substrate. Even when the zinc coating is locally damaged, it continues to protect the steel substrate through “sacrificial anode protection,” significantly delaying substrate corrosion.
3. The zinc coating exhibits excellent adhesion. Even when subjected to complex deformation processes, the zinc layer remains intact without peeling.
4. It possesses good thermal reflectivity and can serve as a heat insulation material.
5. The surface gloss is long-lasting.
| Galvanized | Galvannealed | ||
| Regular Spangle | Minimized (zero) Spangle | Extra-smooth | |
| The zinc coating forms zinc spangle through normal solidification. | Before solidification, zinc powder or vapor is blown onto the coating to control spangle crystallization or adjust bath composition, yielding fine spangle or spangle-free finishes. | Post-galvanizing temper rolling produces a smooth surface. | After exiting the zinc bath, the steel strip undergoes alloying furnace treatment to form a zinc-iron alloy layer on the coating. |
| RegularSpangle | Minimized(zero)Spangle | Extra-smooth | Galvannealed |
| Excellent adhesion
Superior weather resistance |
Smooth surface, uniform and aesthetically pleasing after painting | Smooth surface, uniform and aesthetically pleasing after painting | No zinc bloom, rough surface, excellent paintability and weldability |
| Most suitable: Guardrails, blowers, ductwork, conduits
Suitable: Steel roll-up doors, drain pipes, ceiling supports |
Most suitable: Drain pipes, ceiling supports, electrical conduits, roll-up door side posts, color-coated substrates
Suitable for: Automotive bodies, guardrails, blowers |
Best suited for: Drain pipes, automotive components, electrical equipment, freezers, color-coated substrates
Suitable for: Automotive bodies, guardrails, blowers |
Best suited for: Steel roll-up doors, signage, automotive bodies, vending machines, refrigerators, washing machines, display cabinets
Suitable for: Electrical equipment enclosures, office desks and cabinets |
